Air Monitoring

Problem:

The EPA has established six hazardous air pollutants (ozone, nitrogen oxide, carbon monoxide, sulfur dioxide, lead and particulate matter) that pose significant impact on human health. The State of New Jersey and the federal government have set concentration standards for these principal pollutants to protect the public health and prevent environmental damage.

Objectives:

To ensure that the Meadowlands District attains these standards, the New Jersey Sports and Exposition Authority (formerly  NJMC) has been monitoring ozone, nitrogen oxide, carbon monoxide, sulfur dioxide and carbon dioxide since 2007 to determine the impact of major pollution sources, to measure background levels, and to measure secondary impacts in rural areas.

Activities:

Samples are collected by Thermo Scientific five i-series gas analyzers  installed on the roof of the campus building  every minute for 24 hours a day.

All the gas analyzers are calibrated weekly by following EPA protocol and using standard gases. The gas analyzers are also maintained monthly which include replacing air filters and gas purifiers for the quality control.

Gas Analyzers                                                              Gas Measurers

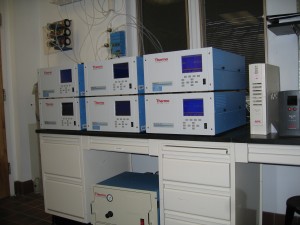

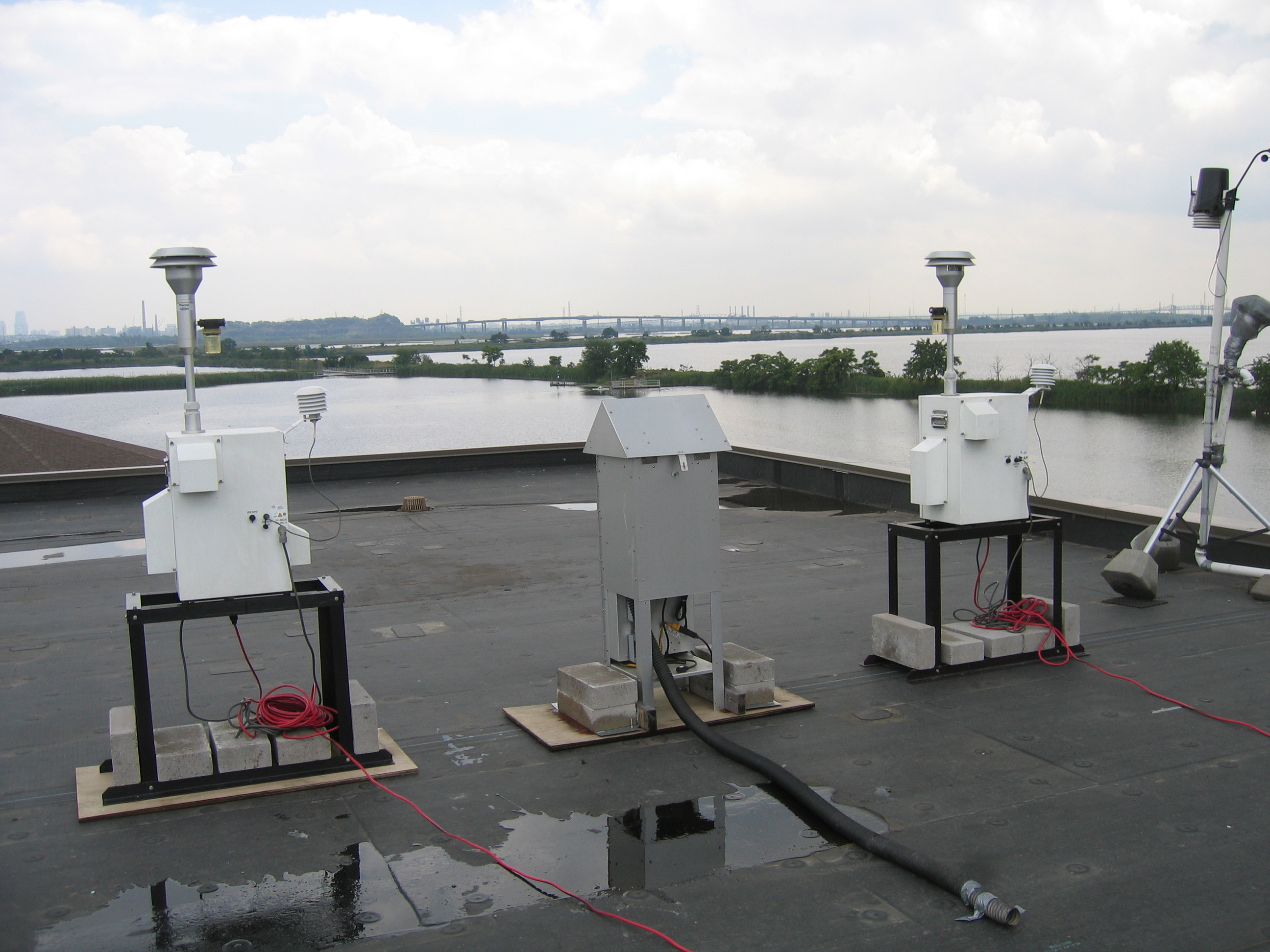

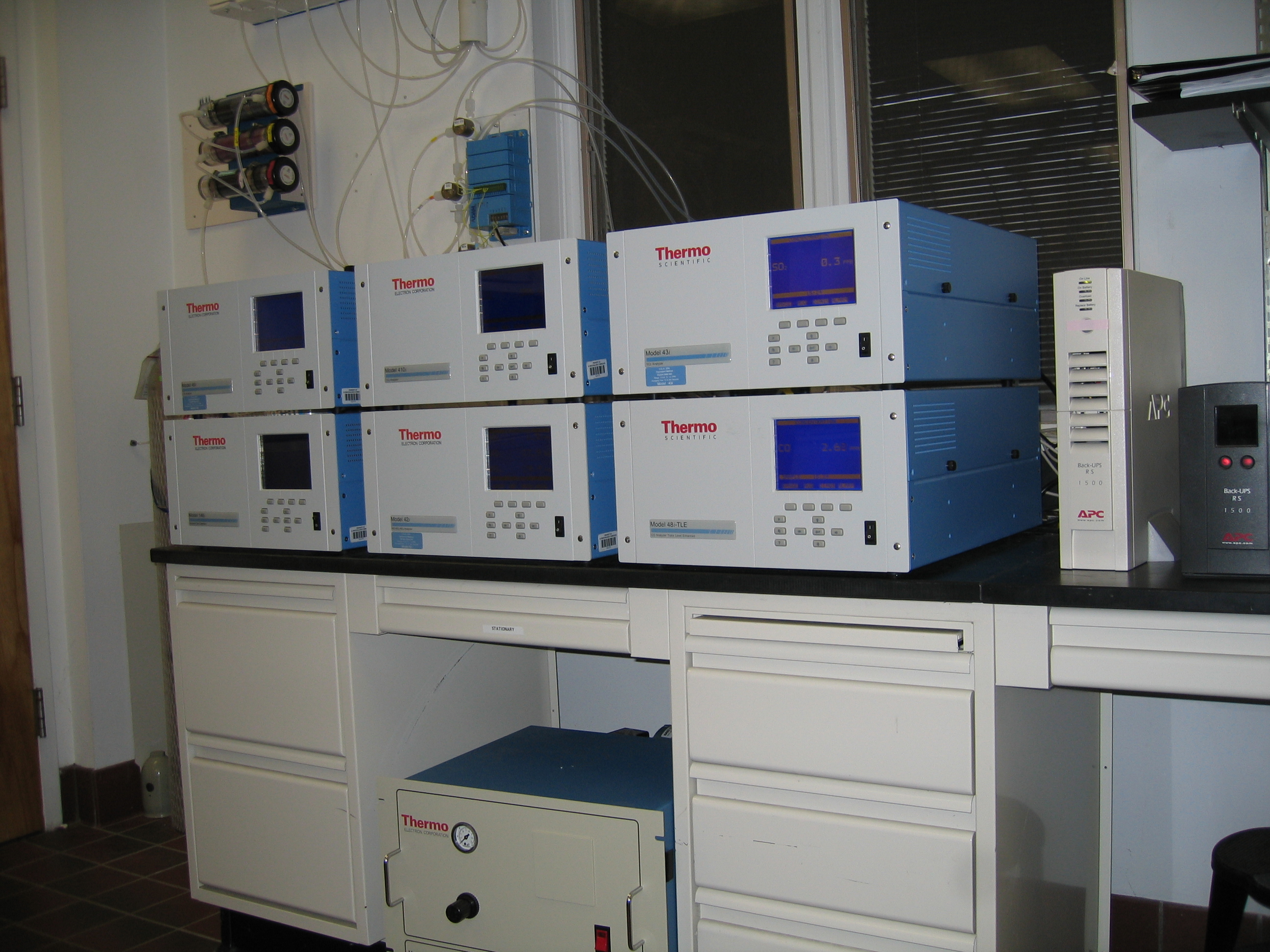

Fig 1. 5 Gas analyzers with dynamic gas calibrator                                               Fig 2. Sampling inlet from NJMC building roof

Deliverables:

All the air data will be used in the current or upcoming air quality related project and will be compared with other 44 state controlled air monitoring sites in New Jersey. Meteorological parameters are also monitored at the same site for use in air quality modeling and dispersion modeling in the future

Click link below to see the near real time data:

http://data.vistadatavision.com/vdv.php?p=0&station_id=-1&page_id=-1&direct=1
